Single cylinder cone crusher parameters:

Model	Power （kw）	Chamber Type	Max Feedin Size （mm）	CSS Discharge Opening &Standard Capacity（t/h）
Model	Power （kw）	Chamber Type	Max Feedin Size （mm）	6	8	10	13	16	19	22	25	32	38	44	51
HD-44	250	Supper Coarse	217	-	-	-	-	115-202	123-279	132-297	140-316	160-360	177-399	-	-
		Coarse	177	-	-	-	102	110-220	118-295	126-316	135-336	153-382	169-339	-	-
		Medium Coarse	142	-	-	-	98-124	107-266	115-286	122-305	130-325	148-333	163-245	-	-
		Medium	112	-	-	-	119-190	128-283	138-303	148-324	157-345	179-286	198	-	-
		Medium Fine	87	-	-	117	127-232	137-251	147-269	157-288	167-306	190-254	-	-	-
		Fine	72	-	93-139	99-181	107-196	115-212	123-227	133-243	141-258	160-214	-	-	-
		SupperFine	40	100	125	-	-	-	-	-	-	-	-	-	-
HD-53	315	Supper Coarse	280	-	-	-	-	180	193-344	207-444	220-472	250-557	277-616	303-674	334-520
		Standard Supper	250	-	-	-	-	178-198	191-382	204-498	216-530	247-604	273-667	299-532	330-361
		Coarse	220	-	-	-	-	175-194	188-376	201-491	214-522	244-596	269-658	295-524	324-361
		Medium Coarse	180	-	-	-	-	167-260	179-438	191-468	204-498	232-568	256-513	281-374	-
		Medium	140	-	-	-	-	204-306	219-456	234-487	249-519	284-521	313-418	-	-
		Medium Fine	120	-	-	-	200	216-385	232-413	247-441	263-470	299-471	332-379	-	-
		Fine	90	-	-	-	206-322	222-347	238-373	255-398	271-424	309-425	342	-	-
		Supper Fine	70	-	-	-	227-316	244-340	263-321	281-312	-	-	-	-	-

Note: Parameters are subject to change without prior notice, please contact us.

Introduction to single cylinder cone crusher:

The single-cylinder cone crusher integrates mechanical, hydraulic, electrical, automation, intelligent control and other technologies. It is the phoenix of Hengyuan Group. Based on the experience of R&D, design, production, sales and service of crusher for more than 20 years, it combines modern industry. The development of science and technology, a new high-efficiency crusher independently developed and designed.

Principle of single cylinder cone crusher:

When the single-cylinder cone crusher is working: the motor drives the small gear of the crusher, the small gear drives the large gear, and the large gear assembly (large gear, large gear carrier, eccentric steel sleeve) drives the eccentric sleeve assembly (eccentric cylinder sleeve, eccentric copper sleeve) And the spindle assembly (spindle, inner cone, inner cone lining) is centered on the theoretical vertical line and revolves in the copper bushing. The spindle assembly can be rotated in the eccentric copper sleeve with the center line of the main shaft. When the empty machine is running, the eccentric sleeve assembly “holds” the spindle assembly and revolves along with the large gear. When the material is added to the crushing chamber, the spindle assembly (spindle, inner cone) is slowly in the eccentric copper sleeve under the resistance of the material. The rotation. The running trajectory of the inner cone appears to oscillate back and forth within the crushing chamber while rotating slowly. The material is crushed by the inner cone of the swing. The joint between the support sleeve and the frame body is pressed by the hydraulic cylinder. When the crusher falls into a non-crushable object such as a metal block, the single-cylinder moving cone is lifted by the bottom hydraulic piston to adjust the discharge port and protect the iron. Lifting and removing the role of blocking.

Single cylinder cone crusher features:

1. Support at both ends of the spindle

The main shaft floats and supports at both ends, which has large carrying capacity, compact structure and reliable and stable operation.

2. Dust seal system

Positive pressure dustproof device effectively prevents lubricant contamination and damages bearings, prolonging the service life of lubricating oil and equipment.

3. Transmission system

The transmission system adopts spiral bevel gear design, which has high bearing capacity, stable transmission and low noise.

4. Body frame optimization design

With the new boom layout, the force is more uniform, effectively avoiding the impact wear of the material on the upper frame. Non-destructive testing and acceptance are adopted to make the overall strength of the machine higher, which improves the reliability of equipment operation and prolongs the service life of the whole machine.

5. Steep cone type moving cone

The taper of the moving cone is steep and the material passing ability is higher.

6. Full hydraulic system adjusts the discharge opening and the iron protection device

The HD series single-cylinder cone crusher adopts a combination of spindle floating and hydraulic lifting control. It integrates the adjustment of the discharge opening and the overload protection function, which simplifies the structure of the crusher while ensuring performance, compared to other types. The cone crusher no longer adds additional discharge port adjustment devices and over-iron protection devices, which makes the structure of the device simpler and increases the reliability of equipment operation.

7. Advanced sliding bearing design

The sliding bearing adopts a special oil wedge design, which forms a stable lubricating oil film on the contact surface between the main shaft and the bearing, avoiding direct friction, reducing the heat generation and prolonging the service life of the bearing.

8. Safe and reliable insurance system.

The high pressure design is used to meet the low pressure demand, and the equipment has a high pressure margin during normal operation, which improves the reliability of the hydraulic system and ensures timely alarm when the machine is overloaded.

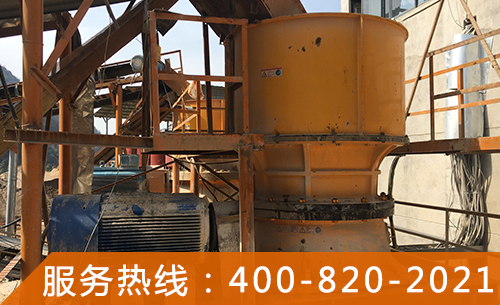

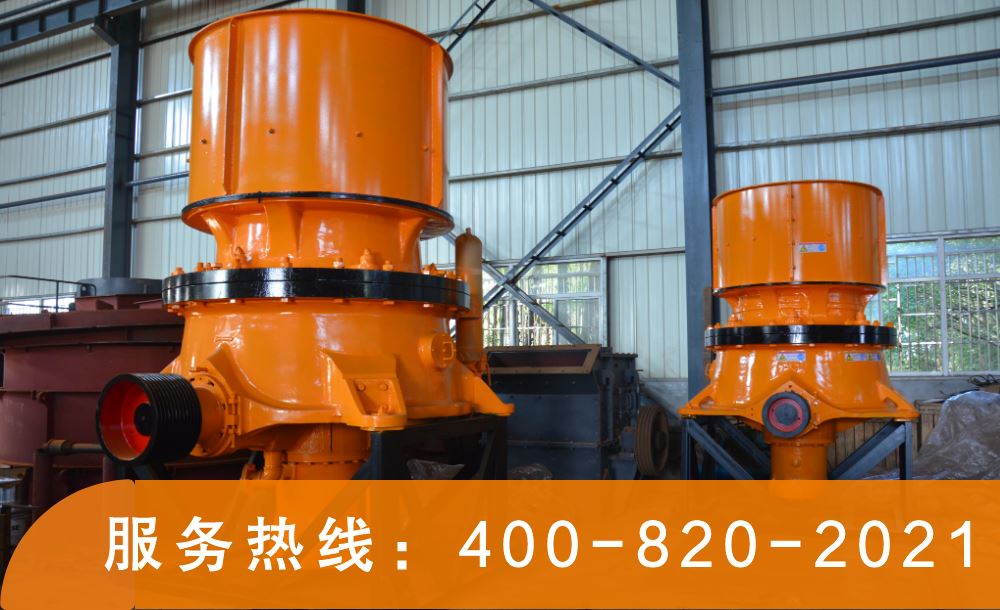

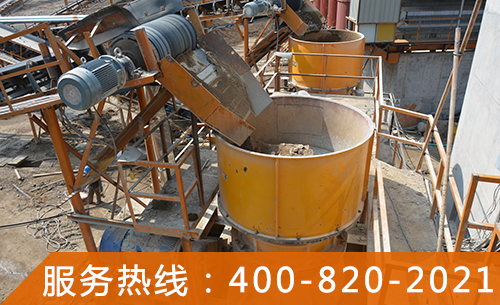

Single cylinder cone crusher factory picture:
