Hydraulic cone crusher parameters:

Model		Cavity type	Diameter of crushing cone(mm)	Adjustment range of discharge outlet (mm)	Maximum feed size (mm)	Processing capacity (t/h)	Motor power (kw)	Weight (kg)	Outline size (LWH)(mm)
1300	PYFB-1313	Standard fine form	1295	13-31	115	109-181	160	22476	298318663156
	PYFB-1321	Standard medium		16-38	178	132-253		22167
	PYFB-1324	Standard coarse form		19-51	205	172-349		22120
	PYFB-1325	Standard extra-coarse type		25-51	220	236-358		22125
	PYFD-1306	Short headed fine type		3-16	54	36-163		21703
	PYFD-1308	Short head medium		6-16	78	82-163		21675
	PYFD-1310	Short head coarse pattern		8-25	89	109-227		21789
	PYFD-1313	Short Head Extra Coarse Type		16-25	113	209-236		21821
1600	PYFBII-1620	Standard fine form	1676	16-38	178	181-327	250	41460	390029303242
	PYFBII-1624	Standard medium		22-51	205	258-417		41087
	PYFBII-1626	Standard coarse form		25-64	228	299-635		40834
	PYFBII-1636	Standard extra-coarse type		38-64	313	431-630		40674
	PYFDII-1607	Short headed fine type		5-13	60	90-209		40734
	PYFDII-1608	Short head medium		6-19	76	136-281		40614
	PYFDII-1613	Short head coarse pattern		10-25	113	190-336		40531
	PYFDII-1614	Short Head Extra Coarse Type		13-25	129	253-336		40374
2100	PYFBII-2127	Standard fine form	2134	19-38	236	544-1034	400	86730	461333024638
	PYFBII-2133	Standard medium		25-51	284	862-1424
	PYFBII-2136	Standard coarse form		31-64	314	1125-1814
	PYFBII-2146	Standard extra-coarse type		38-64	391	1252-1941
	PYFDII-2110	Short headed fine type		5-16	89	218-463		89500
	PYFDII-2113	Short head medium		10-19	113	404-580
	PYFDII-2117	Short head coarse pattern		13-25	151	517-680
	PYFDII-2120	Short Head Extra Coarse Type		16-25	172	580-744

Note: If the parameters are updated, please contact us without further notice.

Hydraulic cone crusher introduction:

The hydraulic cone crusher is a modern high-performance hydraulic cone crusher based on the needs of customers, based on the principle of laminating crushing and the concept of multi-breaking and grinding, designed to integrate high swing frequency, optimized cavity and reasonable stroke. This series of cone crushers are generally engaged in the second or third stage of crushing, especially for materials with medium hardness or higher.

Hydraulic cone crusher principle:

When the hydraulic cone crusher is working, the rotation of the motor is rotated by a pulley or a coupling, a cone crusher drive shaft and a conical crusher cone under a urging of the eccentric sleeve. Therefore, the cone crushing wall is sometimes close to each other, and sometimes the surface of the corrugated wall fixed on the adjusting sleeve is left, so that the ore is continuously subjected to impact, pressing and bending in the crushing chamber to realize crushing of the ore.

Hydraulic cone crusher performance characteristics:

The combination of high-performance crushing chamber type and high crushing frequency makes the processing capacity of the cone crusher greatly improved. Because of the laminating crushing principle, the crushed products are mostly cubic structures, which reduce the needle-shaped materials to a greater extent. The cone crusher has a simple structure, is easy to operate, maintains, and the discharge port is convenient and quick to adjust, saving time and labor during maintenance, especially the lining plate is easy to replace quickly, reducing downtime.

When the unbreakable foreign matter passes through the crushing chamber or the machine is overloaded for some reason, the cone crusher spring insurance system realizes the insurance, and the cone crusher discharges the ore. The foreign matter is discharged from the crushing chamber of the cone crusher. If the foreign matter is stuck in the discharge port, the clearing system is used, so that the ore discharge continues to increase, so that the foreign matter is discharged into the crushing cavity of the cone crusher. Under the action of the spring, the cone crusher automatically resets the discharge port, and the cone crusher resumes normal operation. The cone crusher series crusher is divided into three types: coarse crusher cone crusher, medium crush cone crusher and fine crusher cone crusher. It can be purchased according to different needs of users.

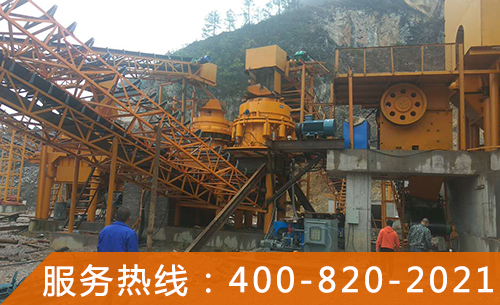

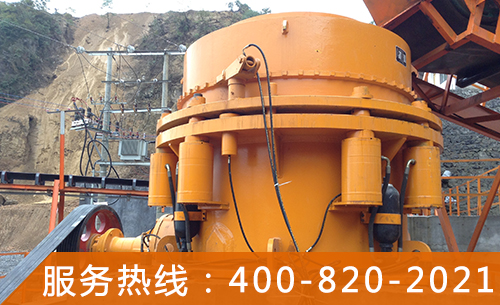

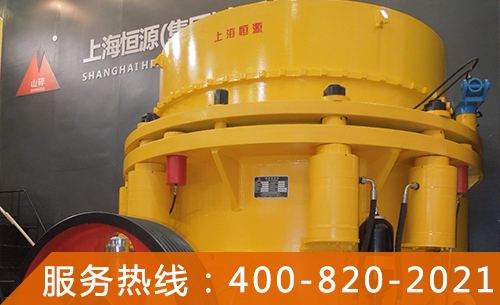

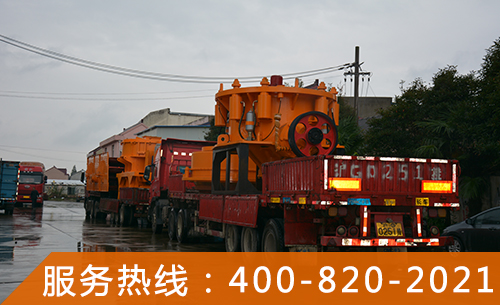

PY hydraulic cone crusher factory picture:
