Vibrating feeder parameters:

Model	Groove size (mm*mm)	Maximum feed (mm)	Processing capacity (t/h)	Eccentric shaft speed(r/min)	Motor Power (kw)	Weight (without motor)(t)	Dimensions (mmmmmm)
GZD 300×90	3000×900	450	40-100	----	2××2.2	2.64	3050×1430×1550
GZD 370×100	3700×1000	500	100-150	----	2×3.7	3.69	4250×1874×1130
GZD 430×120	4300×1200	650	200-400	----	2×5.5	4.2	4955×2206×1120
ZSW-380×96	3800×960	500	100-160	500-714	11	4.2	3882×1684×1340
ZSW-490×110	4900×1100	630	120-280	500-800	15	5.5	4957×2400×2150
ZSW-590×110	5900×1100	630	200-350	750	22	6.1	6000×2500×2150
ZSW-600×130	6000×1300	750	400-560	500-800	30	7.8	6082×2580×2083
ZSW-600×150	6000×1500	800	460-575	500-800	30	8.7	6086×2662×2186
ZSW-600×180	6000×1800	800	600-800	500-800	37	11.8	6310×3262×2230

Note: Parameters are subject to change without prior notice, please contact us.

Introduction to vibrating feeder:

The ZSW series vibrating feeder produced by Phoenix is ??a new type of vibrating feeder designed for evenly conveying large pieces of material before crushing the coarse crusher in the screening. The vibrating feeder adopts the structural characteristics of the double eccentric shaft exciter to ensure that the equipment can withstand the impact of falling of large materials and has a large feeding capacity. In the production process, the block and granular materials can be uniformly, regularly and continuously fed from the storage bin to the receiving device, thereby preventing the receiving device from colliding due to uneven feeding, and prolonging the device. Service life.

Vibration feeder principle:

ZSW and GZD series vibrating feeders are composed of feed trough body, vibration exciter, spring bearing and transmission. The vibration source of the tank vibration feeding is the vibration exciter. The vibration exciter is composed of two eccentric shafts (main and passive) and a gear pair. The motor drives the driving shaft through the V-belt, and the gear on the driving shaft meshes with the passive shaft. Rotating, the main and passive shafts rotate at the same time, so that the tank body vibrates, so that the material continuously flows to achieve the purpose of conveying materials.

Vibration feeder performance characteristics:

In this series of feeders, since the strips with adjustable slits are arranged on the feeding surface near the discharge end, the materials in the material can be separated from the dirt and fine-grained materials at the same time. The crusher functions more effectively; the series of feeders adopts the vibrator and frame ring groove rivet joint structure manufactured by the American branch. It also uses guard plates and rods made of manganese steel, which has strong structure, high strength, impact resistance and wear resistance.

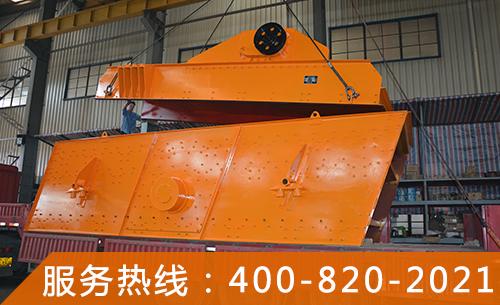

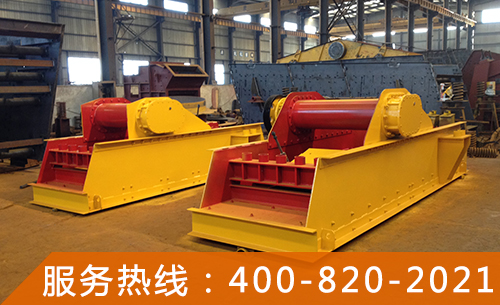

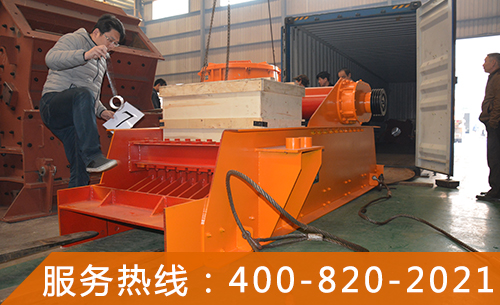

Vibrating feeder factory picture:
